Nature-Inspired Compounds: Synthesis and Antibacterial Susceptibility Testing of Eugenol Derivatives against H. pylori Strains

By Carradori S, Ammazzalorso A, Niccolai S, Tanini D, D’Agostino I, Melfi  F, Capperucci A, Grande R, Sisto F. Nature-Inspired Compounds:  Synthesis and Antibacterial Susceptibility Testing of Eugenol  Derivatives against H. pylori Strains. Pharmaceuticals. 2023 Sep  18;16(9):1317. doi: 10.3390/ph16091317


The antimicrobial properties of one of the most important secondary metabolites, Eugenol (EU), inspired us to design and synthesize three different series of derivatives enhancing its parent compound’s anti-Helicobacter pylori activity. Thus, we prepared semisynthetic derivatives through (A) diazo aryl functionalization, (B) derivatization of the hydroxy group of EU, and (C) elongation of the allyl radical by incorporating a chalcogen atom. The antibacterial evaluation was performed on the reference NCTC 11637 strain and on three drug-resistant clinical isolates and the minimal inhibitory and bactericidal concentrations (MICs and MBCs) highlight the role of chalcogens in enhancing the antimicrobial activity (less than 4 µg/mL for some compounds) of the EU scaffold (32–64 µg/mL).


eugenol; Helicobacter pylori; antibacterial; semisynthesis; chalcogens; MIC; MBC

Graphical Abstract

1. Introduction

Nature has always been a great source of medicaments; providing drugs directly or inspiring their design. Plants have only chemistry to fight for their survival from microbial attacks or weather and this is why they produce several bioactive molecules and metabolites that humans have studied and used for a wide variety of purposes, including the treatment of infectious diseases and cancer, in the preservation of food, and in cosmetics [1,2]. In fact, the World Health Organization (WHO) has estimated that 80% of people worldwide resort to medicinal plants for their primary health care [3].

In this context, essential oils are widely recognized as an interesting source of bioactive compounds that are worthy of investigation, especially for their phenolic components. This is due to their peculiar multitarget pharmacology, which is probably due to the presence and positioning of the hydroxyl function on the phenolic core [4]. Among these small molecules, eugenol (EU, chemically, 4-allyl-2-methoxyphenol, Figure 1) has emerged for its bioactivity and safety profile (with a dose of safety corresponding to 2.5 mg/Kg body) [5]. This has prompted the WHO to put it on its list of compounds that are generally recognized as safe (GRAS) [6].

Pharmaceuticals 16 01317 g001

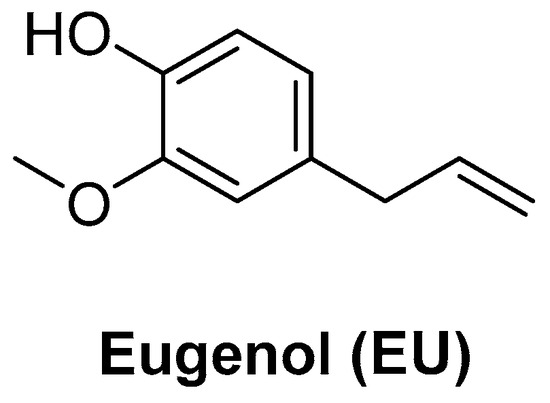

Figure 1. Chemical compound structure of eugenol.

Although it is abundant in cloves (Syzygium aromaticum), it can also be found in various plants, giving them its typical pleasant odor and taste. The high value of this compound and its derivatives in the medicinal chemistry field is justified by its multifaceted activities, including its broad-spectrum antibacterial [7,8], antioxidant [9,10], antifungal [11,12,13], antiviral [14,15,16] and antiprotozoal [17] properties, among its many others [18,19,20].

EU acts as a membrane active agent, causing a loss of membrane integrity of bacteria through several mechanisms of action, such as the inhibition of lipid peroxidation and ROS generation, cytoplasmatic and cell wall lysis, cell contents leakage, cytoplasm coagulation, impairment of membrane proteins and enzymatic activities, and the depletion of the proton motive force [21,22,23].

The presence of the phenolic group is widely recognized to be related to the overall antimicrobial and antibiofilm properties, since it confers a hydrophilic feature to the compound, allowing penetration into the lipopolysaccharide bilayer and entry in the cell, where it disrupts the membrane depolarization due to its proton exchange capability and the final cellular contents leakage and cell lysis. Additionally, the number and position of hydrocarbon substituents on the phenyl ring strongly impact the biological activity and should be considered in reliable drug design approaches. Infection of H. pylori is responsible for several gastric diseases, such as chronic gastritis, peptic and duodenal ulcers [24]; in addition, this pathogen has been well recognized as an important risk factor for the development of gastric adenocarcinoma, which occurs in 1–2% of infected patients. The increasing incidence of inflammation, gastric cancer, intestinal metaplasia, and other severe illnesses caused by H. pylori requires careful attention as well as increased medical efforts to counteract the pathogen infection [25].

In the fight against H. pylori infection, a limited number of approved drugs and impactful strategies are currently available, and the main therapies are based on the combination of proton pump inhibitors (PPIs), clarithromycin (CLR), and amoxicillin (AMX) or metronidazole (MTZ). However, the occurrence of antibiotic resistance is one of the most important factors responsible for the failure of H. pylori eradication therapy; in this view, the identification of different resistant phenotypes and the development of personalized treatments based on antibiotic susceptibility are becoming increasingly important [26,27].

With the alarming increase in bacterial resistance to antibiotics, especially CLR and MTZ, alternative and complementary strategies are under evaluation, including the use of natural compounds and nanotechnological formulations [28]. Along with other structurally related phenols (such as thymol and carvacrol) [29,30,31], EU has been identified as an interesting hit compound in the search for novel, nature-inspired agents useful in the treatment of H. pylori infections [32].

In this work, we report the development of three series of EU derivatives (A–C):

  • A, a diazo function was added in the ortho position, to explore the chemical space near the phenolic group and keep the OH function unsubstituted (17Table 1);
  • B, the phenolic group of the EU was alkylated (814) or incorporated into a carbamate (1618) or ester (19 and 20Table 1) moiety;
  • C, the allylic portion of the EU was replaced by a differently substituted tail, including an epoxide ring (21Table 1), or alcohol chains (22) containing a chalcogen (2330).

Table 1. Antibacterial activity (MIC and MBC values) on four H. pylori strains of series A–C compounds and reference antibiotics.

Pharmaceuticals 16 01317 i001MIC/MBC (µg/mL) on H. pylori Strains *MIC50/MIC90
SeriesCPDRNCTC 11637 **F1 ***23 ***F40/499 ***
A1Pharmaceuticals 16 01317 i00264/12864/12864/128128/12864/128128
2Pharmaceuticals 16 01317 i00332/6432/6432/3232/6432/3264
3Pharmaceuticals 16 01317 i004>128/>128>128/>128>128/>128>128/>128>128/>128>128
4Pharmaceuticals 16 01317 i005128/128128/128128/128128/128128/128128
5Pharmaceuticals 16 01317 i0068/88/816/168/88/1616
6Pharmaceuticals 16 01317 i007128/>128128/128128/>128128/128128/>128>128
7Pharmaceuticals 16 01317 i0088/88/816/168/88/1616
B8Pharmaceuticals 16 01317 i00964/6464/128128/128128/12864/128128
9Pharmaceuticals 16 01317 i01032/6432/3232/3264/6432/6464
10Pharmaceuticals 16 01317 i01132/3232/3232/6432/6432/3264
11Pharmaceuticals 16 01317 i01264/6432/3264/6432/3232/6464
12Pharmaceuticals 16 01317 i0138/88/88/88/88/88
13Pharmaceuticals 16 01317 i01416/328/816/168/88/1632
14Pharmaceuticals 16 01317 i01516/328/816/168/88/1632
15Pharmaceuticals 16 01317 i016128/12832/64128/12832/6432/128128
16Pharmaceuticals 16 01317 i01716/1616/3232/3216/1616/3232
17Pharmaceuticals 16 01317 i0188/168/88/88/88/816
18Pharmaceuticals 16 01317 i01916/3216/1616/168/816/1632
19Pharmaceuticals 16 01317 i02064/6464/64128/12864/12864/128128
20Pharmaceuticals 16 01317 i02132/6432/6464/6432/3232/6464
C21Pharmaceuticals 16 01317 i02264/12864/64128/>12832/3264/128>128
22Pharmaceuticals 16 01317 i023128/12864/64128/12864/6464/128128
23Pharmaceuticals 16 01317 i0248/88/88/88/88/88
24Pharmaceuticals 16 01317 i0258/168/84/82/24/816
25Pharmaceuticals 16 01317 i02616/164/84/84/44/1616
26Pharmaceuticals 16 01317 i02716/168/88/168/88/1616
27Pharmaceuticals 16 01317 i02816/3216/1616/1616/1616/1632
28Pharmaceuticals 16 01317 i02964/6432/3232/6416/1632/6464
29Pharmaceuticals 16 01317 i0304/44/42/42/22/44
30Pharmaceuticals 16 01317 i03116/164/84/84/44/1616
Parent compound
Metronidazole (MTZ)256/2562/21/132/322/256256
Clarithromycin (CLR)0.064/0.0644/80.064/0.0648/80.064/88
Amoxicillin (AMX)0.016/0.0160.064/0.0640.016/0.0160.016/0.0320.016/0.0640.064
Antibiotic susceptibilityMTZ+
* Antibiotic susceptibility was assessed according to EUCAST guidelines (Clinical Breakpoint Tables v. 13.0, valid from 1 January 2023). MICs and MBCs are expressed in μg/mL as the average from experiments performed in triplicate; ** Reference strains; *** Clinical isolates.

The designed compounds 130 were synthesized through straightforward and high-yielding synthetic pathways and then in vitro tested to assess the antibacterial susceptibility of four H. pylori strains, including a reference compound from the NCTC culture collection (NCTC 11637) and three drug-resistant clinical isolates (namely F1, 23, and F40/499) [33].

2. Results and Discussion

2.1. Chemistry

Azoderivatives 17 were synthesized through the traditional diazotization reaction of the suitable substituted aniline with sodium nitrite in acid environment at 0 °C and the following addition of EU in basic solution for NaOH, as depicted in Scheme 1.

Pharmaceuticals 16 01317 sch001

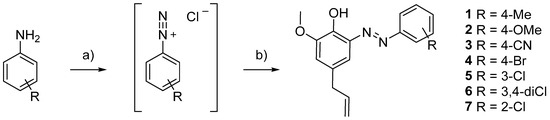

Scheme 1. Synthetic route to azocompounds 17 (series A). Reagents and conditions: (a) NaNO2, 1.2 M HCl, 0 °C, 5 min; (b) EU, 1.32 M NaOH, 0 °C, 5 min.

O-derivatization in series B to compounds 820 was performed as depicted in Scheme 2. In refluxing acetonitrile (ACN) and basic environment, EU was reacted with methyl iodide or propargyl bromide to obtain compounds 8 and 9, respectively, or epibromohydrin for epoxide derivative 10. The reaction of EU with 2-iodoethanol, in refluxing N,N-dimethylformamide (DMF), afforded the alcohol 11; with proper epoxide—styrene oxide, 2,3-epoxypropyl benzene, or 1,2-epoxy-3-phenoxypropane—it gave derivatives 1214, respectively; with 1,5-dibromopentane in the suitable ratio yielding the dimeric ether 15. Instead, the preparations of carbamates 1618 were carried out by reacting EU with the proper isocyanates—phenyl isocyanate, benzyl isocyanate, or 4-chlorophenyl isocyanate, respectively. Esters 19 and 20 were synthesized by working in an excess of acetic anhydride or in the presence of 1-adamantanecarbonyl chloride, respectively.

Pharmaceuticals 16 01317 sch002

Scheme 2. Synthetic routes to compounds 820 (series B). Reagents and conditions: (a) methyl iodide, ACN, reflux, 12 h; (b) propargyl bromide, K2CO3, ACN, reflux, 6 h; (c) epibromohydrin, K2CO3, ACN, reflux, 4 h; (d) 2-iodoethanol, K2CO3, DMF, 0 °C to reflux, 2 h; (e) suitable substituted epoxide, K2CO3, ACN, reflux, 12 h; (f) 1,5-dibromopentane, methanol, 70 °C, 12 h; (g) suitable isocyanate, triethylamine (TEA), dry ACN, r.t. to 60 °C, 24 h; (h) NaHCO3, Ac2O, r.t., 10 h; (i) 1-adamantanecarbonyl chloride, TEA, dimethylamino pyridine (DMAP), CH2Cl2, 0 °C to r.t., 48 h.

The obtainment of series C chalcogen-containing derivatives is reported in Scheme 3. Epoxide 21 was easily prepared upon the reaction of EU with 3-chloroperbenzoic acid (mCPBA) in CH2Cl2 at room temperature (r.t.) for 48 h [34]. The alcohol 22 was synthesized following a literature-reported route via reduction of 21 with LiAlH4 in tetrahydrofuran (THF) [35,36]. Epoxide 21 was, then, employed as the common key precursor for the synthesis of the series of chalcogen-containing EU derivatives 2330. β-Phenylthio, β-phenylseleno, and β-phenyltelluro alcohols 2325 were prepared via a ring-opening reaction of 21 with phenylchalcogenosylanes (PhSSiMe3, PhSeSiMe3, and PhTeSiMe3) under tetrabutylammonium fluoride (TBAF) catalysis [37]. The β-hydroxy sulfide 26 was obtained upon treatment of 21 with 1-pentanethiol in the presence of the Cs2CO3/tetrabutylammonium iodide (TBAI) system using DMF as a solvent [38]. Similarly, the β-hydroxy selenide 27 was synthesized through the ring-opening of 21 with butaneselenolate anions, easily generated in situ by reductive cleavage of dibutyl diselenide with NaBH4 in ethanol (EtOH) [39]. The bidentate selenide 28 was prepared through a related, on-water ring-opening procedure, using sodium selenide (Na2Se) as the nucleophilic species [40]. Na2Se was generated in situ from elemental selenium using rongalite (sodium hydroxymethanesulfinate dihydrate) as the reducing agent and H2O as the solvent. The synthesis of the diselenide 29 was pursued by exploiting the TBAF-catalyzed, silicon-mediated reaction of 21 with bis(trimethylsilyl)selenide [(Me3Si)2Se]. The ring-opening reaction of epoxide 21 also enabled the synthesis of β-hydroxy ditelluride 30 following our recently reported rongalite-mediated methodology [41]. All of the nucleophilic ring-opening reactions herein reported occurred with high regioselectivity, leading to the formation of the product as a result of the attack of the nucleophile onto the less hindered carbon atom of the epoxide 21. In the case of compounds 2830, a mixture of diastereoisomers was achieved.

Pharmaceuticals 16 01317 sch003

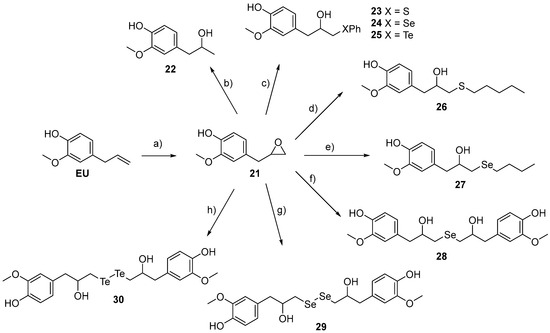

Scheme 3. Synthesis of the EU-derived epoxide 21 and its derivatives 2230 (series C). Reagents and conditions: (a) 3-chloroperbenzoic acid, CH2Cl2, 0 °C to r.t., 48 h; (b) LiAlH4, dry THF, reflux, 5 h; (c) PhXSiMe3 (X = S, Se, Te), TBAF, THF, r.t., 5 h; (d) 1-pentanethiol, Cs2CO3, TBAI, DMF, 0 °C to r.t., 5 h; (e) dibutyl diselenide, NaBH4, EtOH, 0 °C to r.t., 6 h; (f) in situ Na2Se (elemental selenium, rongalite, NaOH, H2O, r.t., 30 min), H2O, r.t., 12 h; (g) (Me3Si)2Se, TBAF, THF, r.t., 5 h; (h) in situ Na2Te (elemental tellurium, rongalite, NaOH, H2O, 90 °C, 2 h), H2O, 90 °C to r.t., 4 h.

2.2. In Vitro Antibacterial Activity Studies against H. pylori

For this study, we used four strains of H. pylori, the commercial strain NCTC 11637 and three clinical isolates (F1, 23, F40/499), which have previously been identified by Gram staining and characterized in terms of catalase, urease, and oxidase activity. The antibiotic susceptibility was then undertaken with metronidazole (MTZ), clarithromycin (CLR), and amoxicillin (AMX) as benchmarks. The assessment of genotypic differences among sensitive and resistant clinical isolates should allow better phenotypic discrimination against resistant strains, which usually affect the susceptibility data not only of the parent compound, but also of its derivatives. In the literature, it is also reported that the resistance to MTZ (NCTC 11637 and F40/499) is usually highly associated with the mutational inactivation of the gene encoding an oxygen-independent NADPH nitroreductase, whereas resistance to CLR (F1 and F40/499) is related to the mutation in the macrolide target. The antibacterial activity data for series A–C compounds are reported in Table 1 and comprise minimal inhibitory concentration (MIC) and minimal bactericidal concentration (MBC) values.

These compounds are endowed with low molecular weights and small chemical structures that allow the design of further derivatives through a wide panel of chemical modifications and derivatization aimed at exploring structure–activity relationships (SARs), modulating their bioactivity and overcoming their poor water solubility and volatility, and obtaining derivatives with improved pharmacokinetic profiles.

Observing Table 1, one can see that EU exhibited MIC values between 32 and 64 µg/mL and that MBC values were higher (64–128 µg/mL). A comparable anti-H. pylori activity against the four strains can be noticed, thus suggesting a mechanism of action not related to their resistance pathways for this compound. In any case, the efficacy of EU seemed to be suitable against MTZ-resistant strains.

In series A, electron-donating groups on the phenyl ring in the para position, such as the methyl group in compound 1 and the methoxy function in 2, seem to be slightly tolerated, resulting in increased MIC values in which the latter are more potent than the former, exhibiting MIC = 32 µg/mL and MBC values between 32 and 64 µg/mL. Instead, the presence of electron-withdrawing groups in the phenyl para-position, such as cyano (3) or bromine (4), and the presence of two chlorine atoms in meta and para (6) led to a dramatic decrease in activity. In the end, m-chloro (5) and o-chloro (7) phenyl derivatives showed the best results in the series, with MIC values of 8 µg/mL and MBC values between 8 and 16 µg/mL on all the tested strains. Despite chlorine atom and methyl group showing similar van der Waals radii and lipophilic properties, their different electronic features differently affect the antibacterial activity.

In series B, small substituents such as the methyl (8), propargyl (9), and methylenepoxide (10) groups did not significantly affect the bioactivity of the compounds. Interestingly, compound 11, containing a primary hydroxy function, showed a low inhibitory potency, while 1214, also bearing a hydroxy function on the aliphatic chain, along with carbamate 17, are the best compounds of the series in terms of antibacterial activity. Observing their structures, we could assume that the presence of a phenyl ring contributes to an optimal hydrophobic/polar balance and, thus, the antibacterial profile of such compounds. As regards derivative 15, the presence of two EU units linked through a flexible O-pentyl spacer resulted in being detrimental to the antibacterial activity against the NCTC 11637 and 23 strains, while a better profile than EU is highlighted against F1 and F40/499 strains. The other two carbamates, 16 and 18, are not worthy of interest, exerting an intermediate activity. However, the presence of chloride in the para position of the phenyl ring in 18 led to a 1-dilution-fold decrease in both MIC and MBC values with respect to the unsubstituted phenyl compound 17. In the end, esters such as acetate (19) and the bulkier adamantyl ester (20) were not able to achieve interesting MIC values.

Notably, series C compounds exhibited the greatest results in the inhibition of H. pylori growth. The epoxide and epoxide-opened ring in 21 and 22, respectively, worsened the antibacterial profile of EU. Compound 24, containing a selenium nucleus, showed the best activity on the MTZ-resistant F40/499 strain, with MIC and MBC values equal to 2 µg/mL, while its analogues with sulfur (23) and tellurium (25) atoms were found to be less potent on the strains panel (MICs = 8–16 µg/mL), though still remaining highly promising antibacterial agents. The replacement of the phenyl ring of 2324 with aliphatic (pentyl) chains on the chalcogen atom, leading to derivatives 2627, caused a decrease in antibacterial potency, with the sulfur compound 26 1-dilution-fold more potent than the corresponding selenium analogue 27 on all of the tested strains. The structural complication of the chain in compounds 2830 gave different results, with 29 being the most potent compound of the C series having MIC and MBC values that range from 2 to 4 µg/mL. However, when the Se–Se bond of 29 is replaced by a single Se atom (28) or a Te–Te bond (30), a decrease in activity was observed. These last modifications were attempts to keep the OH of the parent compound unsubstituted. The design of chalcogen-containing compounds in the C series is envisaged by the increasing interest in organochalcogen derivatives [42]. In fact, sulfur compounds are widely employed in medicinal chemistry as antibiotics or synthetic intermediates. Organoselenium compounds were found to possess a potent electrophilic activity, responsible for the attack on cysteine residues in proteins, especially antioxidative enzymes, resulting in their association with oxidative stress through thiol depletion, reactive oxygen species (ROS) overproduction, DNA damage, and mitochondrial dysfunctions [43]. Instead, tellurium organocompounds remain poorly investigated [44].

3. Materials and Methods

3.1. Chemistry

General chemistry. All commercially available chemicals and solvents were used as purchased. Anhydrous reactions were performed in flame-dried glassware after three cycles of vacuum/dry nitrogen and were run under a positive pressure of dry nitrogen. Chromatographic separations were performed on columns packed with silica gel (230–400 mesh, for flash technique). Reaction monitoring was performed through thin-layer chromatography (TLC) by using 0.2-mm-thick silica gel–aluminum-backed plates (60 F254). TLC spot visualization was performed under short and long wavelength (254 and 365 nm, respectively) ultra-violet irradiation and stained with ninhydrin or basic permanganate stains. 1H and 13C NMR were recorded on a spectrometer operating at 300/400 and 75/100 MHz, respectively. Spectra are reported in parts per million (δ scale) and internally referenced to the CDCl3, CD3OD, and DMSO-d6 signal, respectively, at δ 7.26, 3.31, and 2.50 ppm. Chemical shifts for carbon are reported in parts per million (δ scale) and referenced to the carbon resonances of the solvent (CDCl3 at δ 77.0, CD3OD at δ 49.0, and DMSO-d6 at δ 39.0 ppm). Data are shown as follows: chemical shift, multiplicity (s = singlet, d = doublet, t = triplet, q = quartet, qi = quintet, m = multiplet and/or multiplet resonances, br = broad signal, ap = apparent), integration and coupling constants (J) in Hertz (Hz). The 1H and 13C spectra confirmed the anticipated number of hydrogens and carbons for each compound, respectively. Melting points were measured on a Stuart® melting point apparatus SMP1 (Fisher Scientific Italia, Segrate (MI), Italy) and are uncorrected (temperatures are reported in °C). Elemental analyses for C, H, and N were recorded on a Perkin-Elmer 240 B microanalyzer and the analytical results are within ± 0.4% of the theoretical values for all compounds. Mass spectra were recorded by electrospray ionization (ESI) using a Thermo LCQ-Fleet instrument. Mass spectra (LCMS (ESI)) were acquired using an Agilent 1100 LC-MSD VL system (G1946C, Agilent Technologies Italia Spa, Rome, Italy) by direct injection with a 0.4 mL/min flow rate using a binary solvent system of 95/5 MeOH/H2O. Samples were prepared in MeOH or DMSO/MeOH, according to the solubility properties of the test compound, in some cases in presence of formic acid. Mass spectra were performed in positive mode scanning over the mass range 100–1500 m/z, using a variable fragmentor voltage of 0–70 V.

Compounds 21 [33], 22 [45], 29 [40], and 30 [41] were prepared according to the literature. Spectroscopic data matched those reported.

Procedure and Characterization Data for Derivatives 130

  • General Procedure for the Synthesis of Compounds1–7

An aqueous solution of sodium nitrite (638.1 mg, 9.9 mmol in 5 mL of H2O) was added to an acidic solution (conc. HCl/H2O, 1/10 mL) of the proper substituted aniline (6.6 mmol) at 0–5 °C. The diazonium salt was then coupled by adding a mixture of EU (1.0 mL, 6.6 mmol) in an aqueous solution of NaOH (264.0 mg, 6.6 mmol in 5 mL of H2O) keeping the pH value at 8–9. Once the reaction was completed, the mixture was poured into H2O and extracted with CHCl3 three times (3 × 25 mL). The combined organic layers were dried over Na2SO4, filtered, and evaporated under reduced pressure to afford the crude products. These were then subjected to column chromatography on silica gel, with different n-hexane/EtOAc mixtures as eluent.

  • (E)-4-allyl-2-methoxy-6-(p-tolyldiazenyl)phenol(1)

Red-brown solid, m.p. 96–97 °C, 68% yield. Characterization data are in agreement with the previous literature [46].

  • (E)-4-allyl-2-methoxy-6-[(4-methoxyphenyl)diazenyl]phenol (2)

Red-brown solid, m.p. 98–99 °C, 78% yield. Characterization data are in agreement with the previous literature [46].

  • (E)-4-[(5-allyl-2-hydroxy-3-methoxyphenyl)diazenyl]benzonitrile (3)

Brown solid, m.p. 162–163 °C, 86% yield. 1H NMR (300 MHz, CDCl3δ 3.44 (d, J 7.2 Hz, 2H, CH2), 3.94 (s, 3H, OCH3), 5.12–5.18 (m, 2H, =CH2), 5.94–6.07 (m, 1H, CH=), 6.85 (d, J 1.8 Hz, 1H, Ar), 7.39 (d, J 1.8 Hz, 1H, Ar), 7.81 (d, J 8.7 Hz, 2H, Ar), 7.94 (d, J 8.7 Hz, 2H, Ar), 12.84 (bs, 1H, ArOH). 13C NMR (75 MHz, CDCl3δ 39.5, 56.5, 113.8, 116.5, 116.7, 118.3, 122.5, 124.0, 131.3, 133.4, 136.8, 137.3, 142.8, 148.9, 152.5. Anal. Calcd for C17H15N3O2: C, 69.61; H, 5.15; N, 14.33. Found: C, 69.58; H, 5.17; N, 14.37.

  • (E)-4-allyl-2-((4-bromophenyl)diazenyl)-6-methoxyphenol (4)

Red-brown solid, m.p. 123–124 °C, 77% yield. 1H NMR (300 MHz, CDCl3δ 3.42 (d, J 6.6 Hz, 2H, CH2), 3.93 (s, 3H, OCH3), 5.11–5.17 (m, 2H, =CH2), 5.94–6.07 (m, 1H, CH=), 6.82 (d, J 1.8 Hz, 1H, Ar), 7.39 (s, 1H, Ar), 7.64 (d, J 8.7 Hz, 2H, Ar), 7.73 (d, J 8.7 Hz, 2H, Ar), 12.90 (bs, 1H, ArOH). 13C NMR (75 MHz, CDCl3δ 39.6, 56.5, 155.9, 116.3, 123.6, 123.9, 125.5, 130.9, 132.6, 137.1, 141.6. Anal. Calcd for C15H13BrN2O: C, 56.80; H, 4.13; N, 8.83. Found: C, 56.85; H, 4.14; N, 8.87.

  • (E)-4-allyl-2-[(3-chlorophenyl)diazenyl]-6-methoxyphenol (5)

Brown solid, m.p. 83–84 °C, 93% yield. 1H NMR (300 MHz, CDCl3δ 3.42 (d, J 7.2 Hz, 2H, CH2), 3.93 (s, 3H, OCH3), 5.11–5.18 (m, 2H, =CH2), 5.96–6.05 (m, 1H, CH=), 6.83 (d, J 2.4 Hz, 1H, Ar), 7.40–7.46 (m, 3H, Ar), 7.73–7.76 (m, 1H, Ar), 7.86 (t, J 2.0 Hz, 1H, Ar). 13C NMR (75 MHz, CDCl3δ 39.6, 56.5, 116.1, 116.3, 121.0, 121.8, 124.0, 130.4, 130.8, 131.0, 135.5, 137.0, 141.7, 148.7. Anal. Calcd for C16H15ClN2O2: C, 63.47; H, 4.99; N, 9.25. Found: C, 63.44; H, 5.00; N, 9.29.

  • (E)-4-allyl-2-[(3,4-dichlorophenyl)diazenyl]-6-methoxyphenol (6)

Red solid, m.p. 147–148 °C, 87% yield. 1H NMR (300 MHz, CDCl3δ 3.43 (d, J 7.2 Hz, 2H, CH2), 3.93 (s, 3H, OCH3), 5.12–5.18 (m, 2H, =CH2), 5.94–6.07 (m, 1H, CH=), 6.84 (d, J 1.8 Hz, 1H, Ar), 7.39 (d, J 1.2 Hz, 1H, Ar), 7.60 (d, J 8.7 Hz, 1H, Ar), 7.70 (d, J 1.8 Hz, 1H, Ar), 7.73 (d, J 2.1 Hz, 1H, Ar), 7.97 (d, J 2.4 Hz, 1H, Ar), 12.59 (bs, 1H, ArOH). 13C NMR (75 MHz, CDCl3δ 39.5, 56.5, 116.3, 116.4, 122.2, 123.0, 122.9, 131.1, 133.9, 135.0, 136.9, 137.0, 141.6, 149.2. Anal. Calcd for C16H14Cl2N2O2: C, 56.99; H, 4.18; N, 8.31. Found: C, 56.96; H, 4.20; N, 8.26.

  • (E)-4-allyl-2-[(2-chlorophenyl)diazenyl]-6-methoxyphenol (7)

Red-brown liquid, 83% yield. 1H NMR (300 MHz, CDCl3δ 3.43 (d, J 6.6 Hz, 2H, CH2), 3.94 (s, 3H, OCH3), 5.11–5.18 (m, 2H, =CH2), 5.95–6.08 (m, 1H, CH=), 6.83 (d, J 1.8 Hz, 1H, Ar), 7.38–7.42 (m, 3H, Ar), 7.56–7.58 (m, 1H, Ar), 7.90–7.93 (m, 1H, Ar), 13.39 (bs, 1H, ArOH). 13C NMR (75 MHz, CDCl3δ 39.6, 56.4, 115.9, 116.3, 117.2, 124.3, 127.6, 130.5, 130.7, 131.9, 134.1, 137.1, 137.5, 142.0, 149.0. Anal. Calcd for C16H15ClN2O2: C, 63.47; H, 4.99; N, 9.25. Found: C, 63.50; H, 5.01; N, 9.28.

  • General procedure for the synthesis of 8 and 9

Potassium carbonate (552.8 mg, 4.0 mmol) was added to a mixture of EU (154 µL, 1.0 mmol) and the appropriate alkyl halide (1.5 mmol, methyl iodide for 8 and propargyl bromide for 9) in refluxing ACN (0.4 M). The reaction mixture was diluted with H2O and extracted with CHCl3 (3 × 25 mL); the combined organic layers were dried over Na2SO4, filtered, and evaporated under reduced pressure. Purification by chromatography column on silica gel allowed the obtainment of the desired products, using different n-hexane/EtOAc mixtures as mobile phase.

  • 4-Allyl-1,2-dimethoxybenzene (8)

Colorless oil, 71% yield. Characterization data are in agreement with the previous literature [47].

  • 4-Allyl-2-methoxy-1-(prop-2-yn-1-yloxy)benzene (9)

Colorless liquid, 86% yield. Characterization data are in agreement with the previous literature [48].

  • Synthesis of 2-[(4-allyl-2-methoxyphenoxy)methyl]oxirane (10)

To a stirred solution of EU (462 µL, 3 mmol) in ACN (20 mL), K2CO3 (622 mg, 4.5 mmol) and epibromohydrin (250 µL, 3 mmol) were added, and the mixture was refluxed for 4 h. After dilution with EtOAc, the organic phase was extracted thrice with H2O, dried over Na2SO4, filtered, and concentrated under reduced pressure to afford the crude product. Purification by chromatography on silica gel (eluent cyclohexane/EtOAc 9:1) furnished the desired compound. Colorless oil, 66% yield. Characterization data are in agreement with the previous literature [49]. LCMS (ESI+) m/z = 221.1 [M + H]+; 243.1 [M + Na]+; 463.2 [2M + Na]+.

  • Synthesis of 2-(4-allyl-2-methoxyphenoxy)ethanol (11)

K2CO3 (346 mg, 2.5 mmol) and EU (154 µL, 1 mmol) were solubilized in DMF (15 mL) and allowed to stir for 1 h at room temperature. Then, 2-iodoethanol (156 µL, 2 mmol) was added and the reaction mixture was refluxed for 2 h. After cooling, the solvent was evaporated under reduced pressure. The residue was dissolved in CH2Cl2 and washed three times with distilled H2O. The organic phase was dried over Na2SO4, filtered, and concentrated under reduced pressure. The crude product was purified by chromatography on silica gel (eluent CHCl3) to obtain the desired compound. Yellow oil, 71% yield. 1H NMR (300 MHz, CDCl3δ 3.33 (d, J 7.2 Hz, 2H), 3.85 (s, 3H), 3.89 and 4.10 (both t, J 5.1 Hz, 2H), 5.05 (s, 1H), 5.09 (d, J 9.0 Hz, 1H), 5.88–6.01 (m, 1H), 6.72 (m, 2H), 6.86 (d, J 9.0 Hz, 1H). 13C NMR (75 MHz, CDCl3δ 39.8, 55.7, 61.3, 71.9, 112.3, 115.6, 115.7, 120.7, 134.2, 137.4, 146.2, 149.9. Anal. Calcd for C12H16O3: C, 69.21; H, 7.74. Found: C, 69.31; H, 7.73. LCMS (ESI+) m/z = 231.1 [M + Na]+; 453.2 [2M + Na]+.

  • General procedure for the synthesis of alcohols 12–14

K2CO3 (276 mg, 2 mmol) and EU (169 µL, 1.1 mmol) were added to a stirred solution of proper epoxide (styrene oxide, 2,3-epoxypropyl benzene, or 1,2-epoxy-3-phenoxypropane, 1 mmol) in ACN (15 mL). After 12 h of reflux, the reaction mixture was diluted with EtOAc, extracted thrice with H2O, dried over Na2SO4, filtered, and concentrated under reduced pressure. Crude products were purified by chromatography on silica gel (eluent: CH2Cl2/MeOH 95:5) to obtain the desired compounds.

  • 2-(4-Allyl-2-methoxyphenoxy)-1-phenylethanol (12)

Pale yellow oil, 68% yield. 1H NMR (300 MHz, CDCl3δ 3.35 (d, J 6.9 Hz, 2H), 3.86 (s, 3H), 3.98 (d, J 10.2 Hz, 1H), 4.16 (dd, J 10.2, 3.0 Hz, 1H), 5.04–5.13 (m, 3H), 5.89–6.04 (m, 1H), 6.71–6.75 (m, 2H), 6.87 (d, J 8.4 Hz, 1H), 7.29–7.46 (m, 5H). 13C NMR (75 MHz, CDCl3δ 39.8, 55.8, 72.3, 76.5, 112.3, 115.8, 115.9, 120.8, 126.3, 127.9, 128.4, 134.4, 137.4, 139.6, 146.2, 149.9. Anal. Calcd for C18H20O3: C, 76.03; H, 7.09. Found: C, 76.12; H, 7.07. LCMS (ESI+) m/z = 307.1 [M + Na]+; 591.2 [2M + Na]+.

  • 1-(4-Allyl-2-methoxyphenoxy)-3-phenylpropan-2-ol (13)

Yellow-orange oil, 72% yield. 1H NMR (300 MHz, CDCl3δ 2.87–2.90 (m, 2H), 3.33 (d, J 6.6, 2H), 3.83 (s, 3H), 3.86–4.03 (m, 2H), 4.15–4.23 (m, 1H), 5.04–5.10 (m, 2H), 5.88–6.01 (m, 1H), 6.69 (s and d, 2H), 6.82 (d, J 8.1 Hz, 1H), 7.22–7.33 (m, 5H). 13C NMR (75 MHz, CDCl3δ 39.5, 39.8, 55.8, 70.9, 74.2, 112.4, 115.7, 115.8, 120.7, 126.4, 128.4, 129.3, 134.3, 137.4, 137.7, 146.4, 149.9. Anal. Calcd for C19H22O3: C, 76.48; H, 7.43. Found: C, 76.33; H, 7.44. LCMS (ESI+) m/z = 321.1 [M + Na]+; 619.3 [2M + Na]+.

  • 1-(4-Allyl-2-methoxyphenoxy)-3-phenoxypropan-2-ol (14)

Pale yellow oil, 65% yield. 1H NMR (300 MHz, CDCl3δ 3.34 (d, J 6.6, 2H), 3.84 (s, 3H), 4.11–4.23 (m, 4H), 4.35–4.41 (m, 1H), 5.05–5.12 (m, 2H), 5.89–6.01 (m, 1H), 6.71–6.73 (m, 2H), 6.88–6.97 (m, 4H), 7.25–7.31 (m, 2H). 13C NMR (75 MHz, CDCl3δ 39.8, 55.8, 68.5, 68.7, 71.6, 112.4, 114.5, 115.6, 115.7, 120.7, 121.1, 129.4, 134.3, 137.4, 146.3, 149.8, 158.4. Anal. Calcd for C19H22O4: C, 72.59; H, 7.05. Found: C, 72.68; H, 7.03. LCMS (ESI+) m/z = 315.1 [M + H]+; 337.1 [M + Na]+.

  • Synthesis of 1,5-bis(4-allyl-2-methoxyphenoxy)pentane (15)

EU (308 µL, 2.0 mmol) was added to a mixture of 1,5-dibromopentane (70 µL, 1.0 mmol) and K2CO3 (552.8 mg, 4.0 mmol) in MeOH (150 mL), at 70 °C for 12 h. After evaporation, H2O (25 mL) was added, and the crude was extracted with CHCl3 (3 × 25 mL). The combined organic layers were then dried over Na2SO4, filtered, and evaporated under reduced pressure. The crude product was purified through column chromatography on silica gel, using n-hexane/EtOAc 9:1 as eluent. Orange solid, m.p. 62–64 °C, 87% yield. 1H NMR (300 MHz, CDCl3δ 1.60–1.68 (m, 2H, CH2CH2CH2), 1.89 (qi, J 6.8 Hz, 4H, CH2CH2CH2), 3.32 (d, J 6.7 Hz, 4H, CH2Ar), 3.83 (s, 6H, OCH3), 4.00 (t, J 6.8, 4H, OCH2), 5.02–5.11 (m, 4H, =CH2), 5.95 (ddt, J 16.8, 10.1, 6.7 Hz, 2H, Ar), 6.69 (m, 4H, Ar), 6.79 (d, J 7.8 Hz, 2H, Ar). 13C NMR (75 MHz, CDCl3δ 22.6, 29.1, 29.8, 39.9, 56.0, 69.1, 112.5, 113.4, 115.7, 120.6, 132.9, 137.8, 147.0, 149.5. Anal. Calcd for C25H32O4: C 75.73; H, 8.13. Found: C 75.80; H, 8.15. LCMS (ESI+) m/z = 419.2 [M + Na]+.

  • General procedure for the synthesis of carbamates 16–18

TEA (209 µL, 1.5 mmol) was added to a solution of EU (230 µL, 1.5 mmol) in dry ACN (150 mL) at r.t. under a nitrogen atmosphere. The mixture was stirred for 15 min, then the proper isocyanate (phenyl isocyanate, p-chlorophenyl isocyanate, or benzyl isocyanate, 1.65 mmol) was added portionwise. The reaction mixture was stirred at 60 °C for 24 h, it was then cooled down to room temperature. The mixture was diluted with EtOAc, washed with distilled H2O and then dried over Na2SO4, it was then filtered, and evaporated under reduced pressure. The crude products were purified by chromatography on silica gel using CHCl3 as the eluent.

  • 4-Allyl-2-methoxyphenyl phenylcarbamate (16)

White solid, m.p. 98–100 °C, 57% yield. 1H NMR (300 MHz, CDCl3δ 3.39 (d, J 6.9 Hz, 2H), 3.83 (s, 3H), 5.08 (s, 1H), 5.13 (d, J 9.3 Hz, 1H), 5.90–6.03 (m, 1H), 6.79 (d, J 9.6 Hz, 2H), 7.08 (m, 3H), 7.31 (t, J 7.8 Hz, 2H), 7.44 (d, J 8.1 Hz, 2H). 13C NMR (75 MHz, CDCl3δ 40.1, 55.8, 112.7, 116.1, 118.5, 120.6, 123.0, 123.6, 129.0, 137.0, 137.5, 139.0, 151.3. Anal. Calcd for C17H17NO3: C, 72.07; H, 6.05; N, 4.94. Found: C, 71.98; H, 6.06; N, 4.97. LCMS (ESI+) m/z = 306.1 [M + Na]+; 589.2 [2M + Na]+.

  • 4-Allyl-2-methoxyphenyl benzylcarbamate (17)

White solid, m.p. 77–79 °C, 72% yield. 1H NMR (300 MHz, CDCl3δ 3.37 (d, J 6.6 Hz, 2H), 3.83 (s, 3H), 4.45 (d, J 6.0 Hz, 2H), 5.08 (s, 1H), 5.12 (d, J 9.0 Hz, 1H), 5.41 (bs, 1H), 5.89–6.02 (m, 1H), 6.76 (d, J 9.3 Hz, 2H), 7.03 (d, J 7.5 Hz, 1H), 7.29–7.36 (m, 5H). 13C NMR (75 MHz, CDCl3δ 40.0, 45.3, 55.8, 112.7, 116.0, 120.6, 122.9, 127.5, 127.6, 128.6, 137.1, 138.2, 138.6, 151.4, 154.6. Anal. Calcd for C18H19NO3: C, 72.71; H, 6.44; N, 4.71. Found: C, 72.59; H, 6.45; N, 4.73. LCMS (ESI+) m/z = 320.1 [M + Na]+; 617.2 [2M + Na]+.

  • 4-Allyl-2-methoxyphenyl (4-chlorophenyl)carbamate (18)

Colorless crystals, 60% yield; m.p. 124–126 °C. 1H NMR (300 MHz, CDCl3δ 3.38 (d, J 7.2 Hz, 2H), 3.83 (s, 3H), 5.08 (s, 1H), 5.13 (d, J 9.3 Hz, 1H), 5.89–6.01 (m, 1H), 6.79 (d, J 9.6 Hz, 2H), 7.05 (d, J 7.5 Hz, 2H), 7.25–7.29 (m, 3H), 7.39 (d, J 8.7 Hz, 2H). 13C NMR (75 MHz, CDCl3δ 40.0, 55.8, 112.7, 116.2, 119.7, 120.6, 122.9, 129.1, 136.1, 136.9, 137.4, 139.2, 151.2. Anal. Calcd for C17H16ClNO3: C, 64.26; H, 5.08; N, 4.41. Found: C, 64.29; H, 5.09; N, 4.45. LCMS (ESI+) m/z = 318.1 [M + H]+; 340.0 [M + Na]+; 657.1 [2M + Na]+.

  • Synthesis of 4-allyl-2-methoxyphenyl acetate (19)

NaHCO3 (168.0 mg, 2.0 mmol) was added to a mixture of EU (154 µL, 1.0 mmol) and acetic anhydride (4.0 mL) at room temperature for 12 h. The crude product was filtered under vacuum and washed with CH2Cl2 three times (5.0 mL). No further purification was required. Pale yellow oil, 89% yield. Characterization data are in agreement with the previous literature [50].

  • Synthesis of 4-allyl-2-methoxyphenyl adamantane-1-carboxylate (20)

TEA (279 µL, 2.0 mmol) and DMAP (12 mg, 0.1 mmol) were added to a solution of EU (154 µL, 1.0 mmol) in CH2Cl2 (150 mL) at 0 °C. In the same conditions, 1-adamantanecarbonyl chloride (219 mg, 1.1 mmol) was added, and the mixture was stirred at r.t. for 48 h. Then, it was diluted with CH2Cl2 (25 mL) and washed with distilled H2O (20 mL) three times. The combined organic layers were dried over Na2SO4, filtered, and evaporated under reduced pressure. The crude material was purified by silica gel chromatography using CHCl3 as the eluent. White solid, m.p. 97–98 °C, 73% yield. Characterization data are in agreement with the previous literature [51]. LCMS (ESI+) m/z = 349.2 [M + Na]+; 675.3 [2M + Na]+.

  • General Procedure for the synthesis of β-phenylcalcogeno alcohols 23–25

A solution of epoxide 21 (0.5 mmol) and phenylchalcogeno silane (PhSSiMe3, PhSeSiMe3, or PhTeSiMe3) (0.6 mmol) in dry THF (3 mL) was treated with TBAF (0.24 mL of 1 M THF solution, 0.24 mmol). The reaction was stirred at r.t. for 5 h until complete consumption of the starting material was observed by TLC. Afterward, sat. aq. NH4Cl was added (2 mL). The crude product was extracted with CH2Cl2 (20 mL) three times, the combined organic layers were dried over Na2SO4, filtered, and evaporated under reduced pressure to afford the crude material, which was purified by flash column chromatography using petroleum ether/EtOAc 3:1 as the eluent to afford β-phenylchalcogeno alcohols 2325.

  • Synthesis of 4-[2-hydroxy-3-(phenylthio)propyl]-2-methoxyphenol (23)

Yellowish oil, 75% yield. 1H NMR (400 MHz, CDCl3δ 2.50 (s,1H, OH), 2.79–2.82 (m, 2H, CH2), 2.93 (dd, J 1.2, 8.0 Hz, 1H, CHaHbS), 3.11 (dd, J 1.2, 4.4 Hz, 1H, CHaHbS), 3.83 (s, 3H, CH3O), 3.90 (m, 1H, CHOH), 5.69 (s, 1H, OH), 6.67–6.71 (m, 2H), 6.84–6.86 (m, 1H), 7.20–7.35 (m, 5H). 13C NMR (100 MHz, CDCl3δ 40.7, 41.9, 55.9, 70.7, 111.9, 114.5, 122.0, 126.5, 129.0, 129.4, 129.7, 135.4, 144.4, 146.5. MS (ESI+) 292.0 [M + H]+.

  • Synthesis of 4-[2-hydroxy-3-(phenylselanyl)propyl]-2-methoxyphenol (24)

Yellowish oil, 68% yield. 1H NMR (400 MHz, CDCl3δ 2.84 (s, 1H, OH), 2.79–2.82 (m, 2H, CH2), 2.93 (dd, J 1.2, 8.0 Hz, 1H, CHaHbSe), 3.11 (dd, J 1.2, 4.4 Hz, 1H, CHaHbSe), 3.81 (s, 3H, CH3O), 3.90 (m, 1H, CHOH), 5.78 (s, 1H, OH), 6.63–6.68 (m, 2H), 6.83 (d, J 8.4 Hz,1H), 7.18–7.25 (m, 3H), 7.47–7.54 (m, 2H). 13C NMR (100 MHz, CDCl3δ 35.6, 42.4, 55.8, 71.3, 111.9, 114.5, 122.0, 127.2, 129.2, 129.5, 129.5, 132.7, 144.3, 146.5. MS (ESI+) 361.2 [M + Na]+.

  • Synthesis of 4-[2-hydroxy-3-(phenyltellanyl)propyl]-2-methoxyphenol (25)

Yellowish oil, 46% yield. 1H NMR (400 MHz, CDCl3δ 2.73–2.89 (m, 3H), 3.04 (dd, J 1.2, 7.2 Hz, 1H), 3.13 (dd, J 0.8, 4.0 Hz, 1H), 3.84 (s, 3H, CH3O), 3.96 (m, 1H, CHOH), 6.66 (d, J 11.6 Hz, 2H), 6.83 (d, J 8.0 Hz, 1H), 7.17–7.21 (m, 2H), 7.25–7.31 (m, 1H), 7.71–7.73 (m, 2H). 13C NMR (100 MHz, CDCl3δ 18.4, 43.8, 55.8, 72.4, 111.4, 111.8, 114.4, 122.0, 127.7, 129.3, 129.5, 138.3, 144.4, 146.5. MS (ESI+) 389.0 [M + H]+.

  • Synthesis of 4-[2-hydroxy-3-(pentylthio)propyl]-2-methoxyphenol (26)

A solution of 1-pentanethiol (62.4 mg, 0.6 mmol) in DMF (2 mL) was cooled at 0 °C and then treated with Cs2CO3 (91 mg, 0.6 mmol) and TBAI (120 mg, 0.6 mmol). Epoxide 21 (90.0 mg, 0.5 mmol) was added, and the reaction mixture was allowed to warm to r.t. and stirred for 5 h. Afterward, the mixture was treated with saturated aqueous NH4Cl (2 mL) and EtOAc (5 mL) was added. The aqueous phase was extracted with EtOAc twice (5 mL), and the combined organic layers were dried over Na2SO4, filtered, and evaporated under reduced pressure to afford a crude product, which was purified on silica gel (petroleum ether/EtOAc 2:1) to afford 26 as a yellowish oil, 63% yield. 1H NMR (400 MHz, CDCl3δ 0.88 (t, J 6.8 Hz, 3H), 1.26–1.39 (m, 3H), 1.58–1.59 (m, 3H), 2.46–2.52 (m, 4H), 2.74–2.77 (m, 3H), 3.87–3.88 (m, 4H), 5.52 (s, 1H), 6.73 (t, J 4.8 Hz, 2H), 6.84 (d, J 1.2 Hz, 1H). 13C NMR (100 MHz, CDCl3δ 13.9, 22.2, 22.3, 28.9, 29.4, 30.7, 30.9, 32.4, 39.2, 39.2, 42.1, 55.9, 70.7, 111.9, 114.4, 121.9, 129.7, 144.3, 146.5. MS (ESI+) 307.1 [M + Na]+.

  • Synthesis of 4-[3-(butylselanyl)-2-hydroxypropyl]-2-methoxyphenol (27)

NaBH4 (38.0 mg, 1.0 mmol) was added to dibutyl diselenide (68.0 mg, 0.25 mmol) in EtOH (2 mL) and the mixture was stirred at r.t. for 15 min, during which the reddish mixture became colorless. Epoxide 21 (90 mg, 0.5 mmol) was added, and the mixture was stirred for an additional 6 h. Afterward, the mixture was treated with sat. aq. NH4Cl (2 mL) and EtOAc (5 mL) was added. The aqueous phase was extracted with EtOAc twice (5 mL). The combined organic layers were dried over Na2SO4, filtered, and evaporated under reduced pressure to afford a crude product, which was purified on silica gel (petroleum ether/EtOAc 2:1) to afford 27 as a yellowish oil, 92% yield. 1H NMR (400 MHz, CDCl3δ 0.89 (t, J 7.4 Hz, 3H), 1.32–1.44 (m, 2H), 1.57–1.65 (m, 2H), 2.51–2.57 (m, 3H), 2.58 (dd, J 5.2, 7.7 Hz, 2H), 2.75 (dd, J 3.5, 9.2 Hz, 1H), 2.77 (ap d, J 6.5 Hz, 2H), 3.82–3.88 (m, 1H), 3.86 (s, 3H), 5.63 (bs, 1H, OH), 6.69 (dd, J 1.8, 8.0 Hz, 1H), 6.73 (d, J 1.8 Hz, 1H), 6.84 (d, J 8.0 Hz, 1H). 13C NMR (100 MHz, CDCl3δ 13.6, 22.9, 24.5, 32.0, 32.7, 42.6, 55.9, 71.2, 111.8, 114.4, 121.9, 129.8, 144.2, 146.4. MS (ESI+) 319.2 [M + H]+.

  • Synthesis of 4,4′-[selenobis(2-hydroxypropane-3,1-diyl)]bis(2-methoxyphenol) (28)

Elemental selenium (38.0 mg, 0.5 mmol), sodium hydroxymethanesulfinate dihydrate (154.0 mg, 1.0 mmol), and NaOH (80.9 mg, 2.0 mmol) were placed in a 5 mL vial with 2 mL of H2O. The vial was sealed, and the reaction mixture was stirred for 30 min at r.t. under a nitrogen atmosphere. The color of the solution turned from red to orange-yellow. Then, epoxide 21 (153.0 mg, 0.85 mmol) was added and the reaction mixture was stirred at r.t. for an additional 4 h. Afterward, the mixture was treated with sat. aq. NH4Cl (2 mL) and EtOAc (5 mL) was added. The aqueous phase was extracted with EtOAc twice (5 mL). The combined organic layers were dried over Na2SO4, filtered, and evaporated under reduced pressure to afford a crude product, which was purified on silica gel (petroleum ether/EtOAc 2:1) to afford 28 as a yellowish oil, 63% yield. 1H NMR (400 MHz, CDCl3δ 2.63 (dd, J 4.2, 8.1 Hz, 2H), 2.66 (dd, J 4.1, 8.1 Hz, 2H), 2.74–2.76 (m, 8H), 2.80–2.85 (m, 4H), 2.98 (bs, 4H, OH), 3.84 (s, 6H), 3.85 (s, 6H), 3.89–3.95 (m, 4H), 5.70 (bs, 4H, OH), 6.67 (d, J 8.1 Hz, 4H), 6.70 (s, 4H), 6.82 (d, J 8.1 Hz, 4H). 13C NMR (100 MHz, CDCl3δ 14.2, 21.0, 32.4, 32.5, 42.9, 42.9, 55.9, 60.4, 72.1, 72.4, 111.9, 114.5, 121.9, 129.6, 129.6, 144.3, 146.6, 171.2. MS (ESI+) 465.2 [M + Na]+.

3.2. Anti-H. pylori Activity Testing

MIC and MBC determinations were performed by modified broth microdilution assay as previously described and the plates were examined visually after 72 h [52] on a reference strain and three clinical isolates. A control without the test molecules was also carried out. Antibiotic susceptibility was assessed according to EUCAST guidelines and MICs and MBCs are expressed in μg/mL as the average from experiments performed at least in triplicate. Antibiotic susceptibility of the strains: MTZ+ = metronidazole resistant (MIC > 8 μg/mL); MTZ− = metronidazole susceptible (MIC ≤ 8 μg/mL); CLR+ = clarithromycin resistant (MIC > 0.25 μg/mL); CLR− = clarithromycin susceptible (MIC ≤ 0.25 μg/mL); AMX+ = amoxicillin resistant (MIC > 0.125 μg/mL); AMX− = amoxicillin susceptible (MIC ≤ 0.125 μg/mL) [53].

3.3. In Silico Studies

All designed compounds were analyzed by means of SwissADME tool [54] and were found to not be potential pan assay interference compounds (PAINS), with the exception of the diazoderivatives due to the diazo function alert [55]. SwissAdme analysis assessed the compounds solubility by classifying them through the ESOL, Ali, and Silicos-IT classes. Herein, we have reported the former classification. Series A was found to be moderately soluble, Series B includes compounds 812 and 19 that were found to be soluble and compounds 1318 and 20 that were found to be moderately soluble. In series C, intermediate 21 and compound 22 were found to be very soluble, compounds 23242627, and 30 soluble, and compounds 2528, and 29 moderately soluble. In silico toxicity was assessed in silico by means of Molbook software [56] and VenomPred tool [57]. Some compounds showed some alerts and thus require further in wet investigation.

4. Conclusions

Despite the bioactive compounds that nature can provide, medicinal chemists’ interventions are often required in order to modify the chemical structures of the compounds in order to improve and modulate their biological function toward a biomedical purpose. In this context, EU is a natural compound widely distributed in essential oils that is endowed with a broad antimicrobial activity profile that also includes anti-H. pylori activity. In this work, we have reported our (MedChem) role in the design of three different chemical modifications of its structure. Thus, we have explored the chemical space around the phenolic OH group in its ortho position through aryl diazotation or derivatizing it via O-alkylation and O-benzylation, and, in the end, replacing the allyl tail, also by introducing one or more chalcogen atoms. Antibacterial susceptibility testing on four strains of H. pylori, including three clinical isolates, highlighted improved activity in some cases. In particular, some chalcogen-containing compounds—262729, and 30—displayed 2- (compounds 2627 and 30, MIC = 16 µg/mL on NCTC 11637 strain) or 4- (compound 26, MIC = 4 µg/mL on NCTC 11637 strain) dilution-fold lower MICs compared with EU, while compound 28 showed worsened bioactivity (MIC = 64 µg/mL on NCTC 11637 strain).

The antibacterial activity was maintained in the resistant clinical isolates; thus, we can assume that the proposed compounds act through an innovative mechanism of action, not shared with already known antibiotics and a specific resistome that has yet to be generated. This finding is very encouraging for the further development of anti-H. pylori agents. Moreover, all the compounds exhibited a bactericidal behavior, which is auspicious in terms of the reduction of the risk of drug-resistant phenomena. However, an in-depth study of generations will be conducted to assess the possible rate of bacterial genome mutation after the administration of the compounds. A combination study with antibiotics currently used in clinics will also be performed in order to preserve this notable feature in future supplication and to avoid the rapid rise of resistance of the biological targets involved. The antibacterial profile of the compounds will also be investigated against different bacterial species to assess if they possess broad- or narrow-spectrum activity.

Author Contributions

Conceptualization, S.C., A.C. and R.G.; synthesis, F.M., I.D., A.A., S.N. and D.T.; microbiological investigation, F.S. and R.G.; data analysis, S.C. and I.D.; writing—original draft preparation, S.C., D.T., I.D. and A.A. All authors have read and agreed to the published version of the manuscript.


This work was supported by local grants from the Italian Ministry of University and Research held by S.C. and R.G (FAR2021).

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

Data is contained within the article.


This article is based upon work from COST Action EURESTOP, CA21145, supported by COST (European Cooperation in Science and Technology).

Conflicts of Interest

The authors declare no competing interest.


  1. Sharifi-Rad, J.; Sureda, A.; Tenore, G.C.; Daglia, M.; Sharifi-Rad, M.; Valussi, M.; Tundis, R.; Sharifi-Rad, M.; Loizzo, M.R.; Ademiluyi, A.O.; et al. Biological Activities of Essential Oils: From Plant Chemoecology to Traditional Healing Systems. Molecules 201722, 70. [Google Scholar] [CrossRef] [PubMed]
  2. Lu, X.; Friedrich, L.J.; Efferth, T. Natural Products Targeting Tumor Angiogenesis. Br. J. Pharmacol. 2023online ahead of print. [Google Scholar] [CrossRef] [PubMed]
  3. Palhares, R.M.; Gonçalves Drummond, M.; Dos Santos Alves Figueiredo Brasil, B.; Pereira Cosenza, G.; das Graças Lins Brandão, M.; Oliveira, G. Medicinal plants recommended by the world health organization: DNA barcode identification associated with chemical analyses guarantees their quality. PLoS ONE 201510, e0127866. [Google Scholar] [CrossRef]
  4. Ahmad, A.; Elisha, I.L.; van Vuuren, S.; Viljoen, A. Volatile phenolics: A comprehensive review of the anti-infective properties of an important class of essential oil constituents. Phytochemistry 2021190, 112864. [Google Scholar] [CrossRef] [PubMed]
  5. Ulanowska, M.; Olas, B. Biological Properties and Prospects for the Application of eugenol-A Review. Int. J. Mol. Sci. 202122, 3671. [Google Scholar] [CrossRef]
  6. FDA, U.S. Food & Drug Administration. Available online: (accessed on 7 September 2023).
  7. Kamatou, G.P.; Vermaak, I.; Viljoen, A.M. Eugenol from the remote Maluku Islands to the international market place: A review of a remarkable and versatile molecule. Molecules 201217, 6953–6981. [Google Scholar] [CrossRef]
  8. Marchese, A.; Barbieri, R.; Coppo, E.; Orhan, I.E.; Daglia, M.; Nabavi, S.F.; Izadi, M.; Abdollahi, M.; Nabavi, S.M.; Ajami, M. Antimicrobial activity of eugenol and essential oils containing eugenol: A mechanistic viewpoint. Crit. Rev. Microbiol. 201743, 668–689. [Google Scholar] [CrossRef] [PubMed]
  9. Gülçin, İ. Antioxidant activity of eugenol: A structure-activity relationship study. J. Med. Food. 201114, 975–985. [Google Scholar] [CrossRef] [PubMed]
  10. Nagababu, E.; Rifkind, J.M.; Boindala, S.; Nakka, L. Assessment of antioxidant activity of eugenol in vitro and in vivo. Methods Mol. Biol. 2010610, 165–180. [Google Scholar]
  11. Cheng, S.S.; Liu, J.Y.; Chang, E.H.; Chang, S.T. Antifungal activity of cinnamaldehyde and eugenol congeners against wood-rot fungi. Bioresour. Technol. 200899, 5145–5149. [Google Scholar] [CrossRef]
  12. Alam, H.; Srivastava, V.; Sekgele, W.; Wani, M.Y.; Al-Bogami, A.S.; Molepo, J.; Ahmad, A. Cellular apoptosis and cell cycle arrest as potential therapeutic targets for eugenol derivatives in Candida aurisPLoS ONE 202318, e0285473. [Google Scholar] [CrossRef] [PubMed]
  13. Ben Miri, Y.; Nouasri, A.; Herrera, M.; Djenane, D.; Ariño, A. Antifungal Activity of Menthol, Eugenol and Their Combination against Aspergillus ochraceus and Aspergillus niger In Vitro and in Stored Cereals. Foods 202312, 2108. [Google Scholar] [CrossRef] [PubMed]
  14. Benencia, F.; Courrèges, M.C. In vitro and in vivo activity of eugenol on human herpesvirus. Phytother. Res. 200014, 495–500. [Google Scholar] [CrossRef] [PubMed]
  15. Li, Z.; Yang, B.; Ding, Y.; Meng, J.; Hu, J.; Zhou, X.; Liu, L.; Wu, Z.; Yang, S. Insights into a class of natural eugenol and its optimized derivatives as potential tobacco mosaic virus helicase inhibitors by structure-based virtual screening. Int. J. Biol. Macromol. 2023248, 125892. [Google Scholar] [CrossRef]
  16. Oriola, A.O.; Oyedeji, A.O. Essential Oils and Their Compounds as Potential Anti-Influenza Agents. Molecules 202227, 7797. [Google Scholar] [CrossRef]
  17. Reis, R.C.F.M.; Dos Santos, E.G.; Benedetti, M.D.; Reis, A.C.C.; Brandão, G.C.; Silva, G.N.D.; Diniz, L.A.; Ferreira, R.S.; Caldas, I.S.; Braga, S.F.P.; et al. Design and synthesis of new 1,2,3-triazoles derived from eugenol and analogues with in vitro and in vivo activity against Trypanosoma cruziEur. J. Med. Chem. 2023258, 115622. [Google Scholar] [CrossRef] [PubMed]
  18. Khalil, A.A.; Rahman, U.; Khan, M.R.; Sahar, A.; Mehmoodac, T.; Khan, M. Essential oil eugenol: Sources, extraction techniques and nutraceutical perspectives. RSC Adv. 20177, 32669–32681. [Google Scholar] [CrossRef]
  19. Devi, K.P.; Nisha, S.A.; Sakthivel, R.; Pandian, S.K. Eugenol (an essential oil of clove) acts as an antibacterial agent against Salmonella typhi by disrupting the cellular membrane. J. Ethnopharmacol. 2010130, 107–115. [Google Scholar] [CrossRef]
  20. Matykiewicz, D.; Skórczewska, K. Characteristics and Application of Eugenol in the Production of Epoxy and Thermosetting Resin Composites: A Review. Materials 202215, 4824. [Google Scholar] [CrossRef] [PubMed]
  21. Zhang, Y.; Wang, Y.; Zhu, X.; Cao, P.; Wei, S.; Lu, Y. Antibacterial and antibiofilm activities of eugenol from essential oil of Syzygium aromaticum (L.) Merr. & L. M. Perry (clove) leaf against periodontal pathogen Porphyromonas gingivalisMicrob. Pathog. 2017113, 396–402. [Google Scholar]
  22. Jeyakumar, G.E.; Lawrence, R. Mechanisms of bactericidal action of eugenol against Escherichia coliJ. Herb. Med. 202126, 100406. [Google Scholar] [CrossRef]
  23. Sharma, H.K.; Gupta, P.; Nagpal, D.; Mukherjee, M.; Parmar, V.S.; Lather, V. Virtual screening and antimicrobial evaluation for identification of natural compounds as the prospective inhibitors of antibacterial drug resistance targets in Staphylococcus aureusFitoterapia 2023168, 105554. [Google Scholar] [CrossRef] [PubMed]
  24. Kusters, J.G.; van Vliet, A.H.; Kuipers, E.J. Pathogenesis of Helicobacter pylori infection. Clin. Microbiol. Rev. 200619, 449–490. [Google Scholar] [CrossRef]
  25. Hathroubi, S.; Servetas, S.L.; Windham, I.; Merrell, D.S.; Ottemann, K.M. Helicobacter pylori Biofilm Formation and Its Potential Role in Pathogenesis. Microbiol. Mol. Biol. Rev. 201882, e00001-18. [Google Scholar] [CrossRef]
  26. Zhou, Y.; Zhong, Z.; Hu, S.; Wang, J.; Deng, Y.; Li, X.; Chen, X.; Li, X.; Tang, Y.; Li, X.; et al. A Survey of Helicobacter pylori Antibiotic-Resistant Genotypes and Strain Lineages by Whole-Genome Sequencing in China. Antimicrob. Agents Chemother. 202266, 0218821. [Google Scholar] [CrossRef] [PubMed]
  27. Cardos, I.A.; Zaha, D.C.; Sindhu, R.K.; Cavalu, S. Revisiting Therapeutic Strategies for H. pylori Treatment in the Context of Antibiotic Resistance: Focus on Alternative and Complementary Therapies. Molecules 202126, 6078. [Google Scholar] [CrossRef]
  28. Sathianarayanan, S.; Ammanath, A.V.; Biswas, R.B.A.; Sukumaran, S.; Venkidasamy, B. A new approach against Helicobacter pylori using plants and its constituents: A review study. Microb. Pathog. 2022168, 105594. [Google Scholar] [CrossRef]
  29. Grande, R.; Carradori, S.; Puca, V.; Vitale, I.; Angeli, A.; Nocentini, A.; Bonardi, A.; Gratteri, P.; Lanuti, P.; Bologna, G.; et al. Selective Inhibition of Helicobacter pylori Carbonic Anhydrases by Carvacrol and Thymol Could Impair Biofilm Production and the Release of Outer Membrane Vesicles. Int. J. Mol. Sci. 202122, 11583. [Google Scholar] [CrossRef]
  30. Sisto, F.; Carradori, S.; Guglielmi, P.; Spano, M.; Secci, D.; Granese, A.; Sobolev, A.P.; Grande, R.; Campestre, C.; Di Marcantonio, M.C.; et al. Synthesis and Evaluation of Thymol-Based Synthetic Derivatives as Dual-Action Inhibitors against Different Strains of H. pylori and AGS Cell Line. Molecules 202126, 1829. [Google Scholar] [CrossRef]
  31. Sisto, F.; Carradori, S.; Guglielmi, P.; Traversi, C.B.; Spano, M.; Sobolev, A.P.; Secci, D.; Di Marcantonio, M.C.; Haloci, E.; Grande, R.; et al. Synthesis and Biological Evaluation of Carvacrol-Based Derivatives as Dual Inhibitors of H. pylori Strains and AGS Cell Proliferation. Pharmaceuticals 202013, 405. [Google Scholar] [CrossRef]
  32. Ali, S.M.; Khan, A.A.; Ahmed, I.; Musaddiq, M.; Ahmed, K.S.; Polasa, H.; Rao, L.V.; Habibullah, C.M.; Sechi, L.A.; Ahmed, N. Antimicrobial activities of eugenol and Cinnamaldehyde against the human gastric pathogen Helicobacter pyloriAnn. Clin. Microbiol. Antimicrob. 20054, 20. [Google Scholar] [CrossRef]
  33. Sisto, F.; Carradori, S.; D’Alessandro, S.; Santo, N.; Lattuada, N.; Haynes, R.K.; Taramelli, D.; Grande, R. In Vitro Activity of the Arylaminoartemisinin GC012 against Helicobacter pylori and Its Effects on Biofilm. Pathogens 202211, 740. [Google Scholar] [CrossRef]
  34. Sengoden, M.; Bhat, G.A.; Darensbourg, D.J. Explorations into the sustainable synthesis of cyclic and polymeric carbonates and thiocarbonates from eugenol-derived monomers and their reactions with CO2, COS, or CS2Green Chem. 202224, 2535–2541. [Google Scholar] [CrossRef]
  35. Takeshita, M.; Yaguchi, R.; Akutsu, N. Enzymatic preparation of chiral 1-phenylglycidols and 1-phenyl-1,2-propanediols. Tetrahedron Asymmetry 19923, 1369–1372. [Google Scholar] [CrossRef]
  36. Talluri, S.K.; Sudalai, A. An organo-catalytic approach to the enantioselective synthesis of (R)-selegiline. Tetrahedron 200763, 9758–9763. [Google Scholar] [CrossRef]
  37. Tanini, D.; Borgogni, C.; Capperucci, A. Mild and selective silicon-mediated access to enantioenriched 1,2-mercaptoamines and β-amino arylchalcogenides. New J. Chem. 201943, 6388–6393. [Google Scholar] [CrossRef]
  38. Salvatore, R.N.; Smith, R.A.; Nischwitz, A.K.; Gavin, T. A mild and highly convenient chemoselective alkylation of thiols using Cs2CO3–TBAI. Tetrahedron Lett. 200546, 8931–8935. [Google Scholar] [CrossRef]
  39. Tanini, D.; Carradori, S.; Capperucci, A.; Lupori, L.; Zara, S.; Ferraroni, M.; Ghelardini, C.; Di Cesare Mannelli, L.; Micheli, L.; Lucarini, E.; et al. Chalcogenides-incorporating carbonic anhydrase inhibitors concomitantly reverted oxaliplatin-induced neuropathy and enhanced antiproliferative action. Eur. J. Med. Chem. 2021225, 113793. [Google Scholar] [CrossRef]
  40. Tanini, D.; Degl’Innocenti, A.; Capperucci, A. Bis(trimethylsilyl)selenide in the selective synthesis of β-hydroxy, β-mercapto and β-amino diorganyl diselenides and selenides through ring opening of strained heterocycles. Eur. J. Org. Chem. 20152, 357–369. [Google Scholar] [CrossRef]
  41. Tanini, D.; Ricci, L.; Capperucci, A. Rongalite-Promoted on Water Synthesis of Functionalised Tellurides and Ditellurides. Adv. Synth. Catal. 2020362, 1323–1332. [Google Scholar] [CrossRef]
  42. Henriquez-Figuereo, A.; Morán-Serradilla, C.; Angulo-Elizari, E.; Sanmartín, C.; Plano, D. Small molecules containing chalcogen elements (S, Se, Te) as new warhead to fight neglected tropical diseases. Eur. J. Med. Chem. 2023246, 115002. [Google Scholar] [CrossRef]
  43. Nogueira, C.W.; Barbosa, N.V.; Rocha, J.B.T. Toxicology and pharmacology of synthetic organoselenium compounds: An update. Arch. Toxicol. 202195, 1179–1226. [Google Scholar] [CrossRef] [PubMed]
  44. Ba, L.A.; Döring, M.; Jamier, V.; Jacob, C. Tellurium: An element with great biological potency and potential. Org. Biomol. Chem. 20108, 4203–4216. [Google Scholar] [CrossRef] [PubMed]
  45. Bhunia, A.; Bergander, K.; Daniliuc, C.G.; Studer, A. Fe-Catalyzed Anaerobic Mukaiyama-Type Hydration of Alkenes using Nitroarenes. Angew. Chem. Int. Ed. 202160, 8313–8320. [Google Scholar] [CrossRef]
  46. Amaravathi, M.; Kanakaraju, S.; Chandramouli, G.V.P. Synthesis and Characterization of Azobenzene–Porphyrins. J. Heterocyclic Chem. 201350, 268–271. [Google Scholar] [CrossRef]
  47. Heikes, D.L. SFE with GC and MS determination of safrole and related allylbenzenes in sassafras teas. J. Chromatogr. Sci. 199432, 253–258. [Google Scholar] [CrossRef]
  48. Dutra, J.A.P.; Maximino, S.C.; Gonçalves, R.D.C.; Morais, P.A.B.; de Lima Silva, W.C.; Rodrigues, R.P.; Neto, Á.C.; Júnior, V.L.; de Souza Borges, W.; Kitagawa, R.R. Anti-Candida, docking studies, and in vitro metabolism-mediated cytotoxicity evaluation of eugenol derivatives. Chem. Biol. Drug Des. 2023101, 350–363. [Google Scholar] [CrossRef]
  49. Genç Bilgiçli, H.; Kestane, A.; Taslimi, P.; Karabay, O.; Bytyqi-Damoni, A.; Zengin, M.; Gulçin, İ. Novel eugenol bearing oxypropanolamines: Synthesis, characterization, antibacterial, antidiabetic, and anticholinergic potentials. Bioorg. Chem. 201988, 102931. [Google Scholar] [CrossRef]
  50. de Almeida, A.L.; Caleffi-Ferracioli, K.R.; de L Scodro, R.B.; Baldin, V.P.; Montaholi, D.C.; Spricigo, L.F.; Nakamura-Vasconcelos, S.S.; Hegeto, L.A.; Sampiron, E.G.; Costacurta, G.F.; et al. Eugenol and derivatives activity against Mycobacterium tuberculosis, nontuberculous mycobacteria and other bacteria. Future Microbiol. 201914, 331–344. [Google Scholar] [CrossRef]
  51. Sadeghian, H.; Seyedi, S.M.; Saberi, M.R.; Arghiani, Z.; Riazi, M. Design and synthesis of eugenol derivatives, as potent 15-lipoxygenase inhibitors. Bioorg. Med. Chem. 200816, 890–901. [Google Scholar] [CrossRef]
  52. SwissADME: A free web tool to evaluate pharmacokinetics, drug-likeness and medicinal chemistry friendliness of small molecules. Sci. Rep. 20177, 42717. [CrossRef] [PubMed]
  53. Sisto, F.; Scaltrito, M.M.; Russello, G.; Bonomi, A.; Dubini, F. Antimicrobial susceptibility testing of Helicobacter pylori determined by microdilution method using a new medium. Curr. Microbiol. 200958, 559–563. [Google Scholar] [CrossRef] [PubMed]
  54. Eucast: The 13.0 Versions of Breakpoints, Dosing and QC (2023) Published. Available online: (accessed on 1 September 2023).
  55. Josephy, P.D.; Allen-Vercoe, E. Reductive metabolism of azo dyes and drugs: Toxicological implications. Food Chem. Toxicol. 2023178, 113932. [Google Scholar] [CrossRef] [PubMed]
  56. Galati, S.; Di Stefano, M.; Macchia, M.; Poli, G.; Tuccinardi, T. MolBook UNIPI─Create, Manage, Analyze, and Share Your Chemical Data for Free. J. Chem. Inf. Model. 202363, 3977–3982. [Google Scholar] [CrossRef] [PubMed]
  57. Galati, S.; Di Stefano, M.; Martinelli, E.; Macchia, M.; Martinelli, A.; Poli, G.; Tuccinardi, T. VenomPred: A Machine Learning Based Platform for Molecular Toxicity Predictions. Int. J. Mol. Sci. 202223, 2105. [Google Scholar] [CrossRef]
